size and power.
based on your wishes
professional applications.
We advise, design and produce electric heating elements for professional installers. Quality, reliability and safety are paramount in this. So that you can process it without any problems.
View all standard products below.
Please contact us for customized products.
Product categories
-
Heating elements flat-oval (6)
Heating elements flat-oval are made to specification in various options and dimensions. Available sizes 5x12mm, 6x16mm, 8x20mm and 9x30mm. Max. length 6000 mm.
5x12 mm 6x16 mm 8x20 mm 9x30 mm AISI 316L (1.4404) • • • • AISI 321 (1.4541) • -
Heating elements round (11)
Tubular heating elements can be delivered in any number, standard ange or made to specification. Max. length according to diameter from 3,8-6 meter. Connections: Faston of M4/M6 thread.
Max. °C. Ø6,4 mm Ø8,5 mm Ø10,2 mm Ø12,7 mm AISI 304 750°C. • • • AISI 309 900°C. • AISI 316L 750°C. • • • AISI 321 750°C. • • INC 800 800°C. • • • INC 825 750°C. • • Copper 150°C. • -
Finned elements (2)
Finned heating elements are suitable for air heating in ducts etc. and can be delivered in rectangular fins 50x20mm in a standard range or made on specification in any number. Stainless steel fins and round fins (Ø28mm) on request.
-
Cartridge heaters (2)
-
Strap or nozzle elements (2)
Bandheaters can be delivered in 3 types, suitable for heating tubes, pipes etc.
Max. °C. max. Watt density Dimensions Height Mica 300°C. 4 W/cm² Ø40-500 mm 40-400 mm Ceramic 500°C. 7 W/cm² Ø70-500 mm 40-500 mm Nozzle 350°C. 4 W/cm² Ø25-100 mm 25-80 mm -
Ceramic elements (3)
-
Screw-in immersion heaters (4)
-
Flange heaters – tank heaters (6)
Flange heaters or tank heaters are used for heating water, oil, and all kinds of other liquid substances in tanks. The flange plate elements or heaters can be supplied with or without temperature control and protection in the connection box. Flanges available in DIN or ASTM on request.
-
Immersion heating elements (13)
Immersion heaters are used for heating liquids such as water, oil, frying oil, etc. in industry, food industry, etc., optionally with temperature control and protection. Dimensions and surface load on specification.
-
Stainless steel heater (mica - ceramic) (2)
-
Duct heaters round (OMH) (7)
Circular duct heaters are intended for installation in ventilation systems to increase the temperature or to keep it at a constant level. The ducts are made of galvanized steel, ALU-Zinc or stainless steel. Dimensions Ø100-1000mm, the heating elements are of stainless steel. Galvanized models in standard range available from 250W - ± 6000W optional with (thyrister)temperature control and maximum protection.
-
Duct Heater rectangular KIH (4)
Rectangular duct heaters are intended for installation in ventilation systems to increase the temperature of the air or keep it at a constant level. The housing is made to specification of galvanized steel or stainless steel, the heating elements of stainless steel. Optional in several stages, with temperature control and maximum security.
-
Duct Heater Insert (KOH) (5)
Insert Rectangular duct heaters are intended for installation in ventilation systems to increase the temperature of the air or keep it at a constant level. The housing is made to specification of galvanized steel or stainless steel, the heating elements of stainless steel. Optional in several stages, with temperature control and maximum security.
-
Infrared radiator - Church radiator (2)
-
Flexible silicone heating mats - drum heating (3)
Flexible silicone heating mats are suitable for heating many applications including industry, catering, plate heating, aviation, laboratory, satellite dishes, anti-condensation heating, made to specification. Excellent heat transfer, easy installation, flexible, thin design, durable.
-
Circulation heaters, Flow-through devices < 150kW (11)
Electric circulation heaters or flow-through devices are designed for heating liquids such as water, water-glycol, oil, etc. based on the maximum allowable surface load. Available in various sizes, capacities, and controls. Suitable for industry, shipping and marine applications, catering and large kitchen industry, ask for the possibilities. Power: 1 - ± 500kW, connection voltage 1F/3F up to 3x690V. Options and possibilities, see the information sheet below: TECHICAL INFORMATION FLOW-TROUGH DEVICES Request a quote without obligation; gesta@jacdevriesgesta.nl
-
Circulation heaters, Flow-through devices > 150kW (8)
Electric circulation heaters or flow-through devices are designed for heating liquids such as water, oil, etc. Available in various sizes, capacities, and controls. Suitable for industry, shipping and marine applications, catering and large kitchen industry, ask for the possibilities.
-

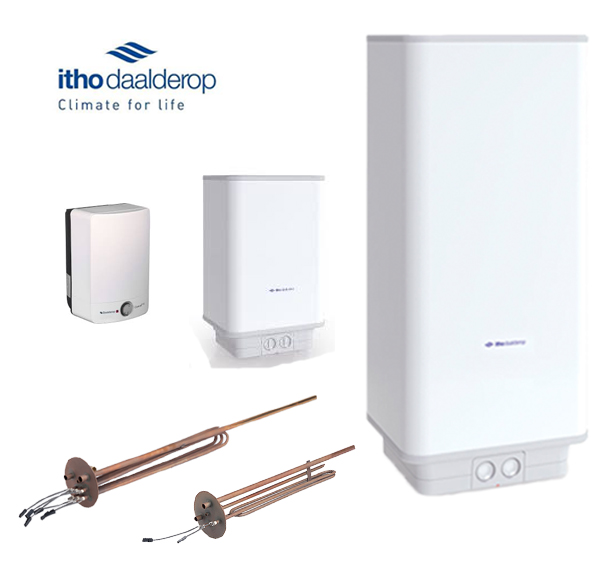

Electric boiler - water heater (6)
Electric water heaters or boilers are available in various brands such as Daalderop, Nibe, Stiebel etc. Optionally equipped with high-quality copper heating elements, suitable for shipping and marine applications, ask for the possibilities.
-
Heated eye and face wash (1)
Heated eye and face wash for flushing eyes and face in the event of an emergency, using heated water, for emergency situations in accordance ANSI Z358.1
-
Tracing and Heating Cable (1)
Lose trace heating cable or pre-assembled trace heating set consisting of: self-limiting heating cable, finishing set, insulation transit set, warning stickers, aluminum tape etc.
-
Fan heaters - Air-blow heaters (4)
Fan heaters - air-blow heaters can be delivered in many brands, according to your request. several brands, capacity and power supplies available.
-
Electric space heating (5)
Electric space heating such as airblow heaters, fan heaters, finned tube heaters and convection heaters can be delivered and supplied in various models of various brands, according to a standard range, or modified with other power supply voltages.
-
Specials (3)
Products specially developed, manufactured and maintained with our expertise in collaboration with the client.
-
Electrical controls (3)
Electrical controls can be provided and delivered in a variety of ways. If a sensitive or proportional temperature control is desired, or a 0-10Vdc control with temperature sensors, or PLC control etc.
-
Accessories electrical controls (7)
Accessories electrical controls such as thermostats, room thermostats, sensors, controllers, suitable for heating equipment.
Use the search function to quickly find your product
