Electric circulation heaters or flow-through devices are designed for heating liquids such as water, water-glycol, oil, etc. based on the maximum allowable surface load. Available in various sizes, capacities, and controls. Suitable for industry, shipping and marine applications, catering and large kitchen industry, ask for the possibilities.
Power: 1 – ± 500kW, connection voltage 1F/3F up to 3x690V.
Options and possibilities, see the information sheet below:
TECHICAL INFORMATION FLOW-TROUGH DEVICES
Request a quote without obligation; gesta@jacdevriesgesta.nl
DSA 1, circulation heater Ø76mm 2 – 9 kW
DSA 1, circulation heater Ø76mm 2 – 9 kW
• For horizontal use, to heat up proces water(+ glycol) in-line, stainless steel 304/316L model
• Power: 2 – 9 kW- 230 / 3x400V, proces connections: ½”- 1½”, or at desired specification
• Including control and limit thermostats, optional PT-100 sensor
• Application: Proces heating industry
DSA 12: circulation heater Ø76mm 250W-3000W
DSA 12: circulation heater Ø76mm 250W-3000W
• For horizontal use, to heat up proces water(+ glycol) in-line, stainless steel 304/316L model
• Power: 250-3000W- 230 / 3x400V, connections: ½”- 1½”, or at desired specification
• Optional: thermostats, PT-100 sensor, proportional control, etc.
• Application: Proces heating industry
(model 250W-230V, art. 113517)
DSA 19: Flow through heater type PPW
DSA 19: Flow through heater type PPW
• For in-line heating of water
• Power 3-9kW- 230/3x400V
• Proces connections 1¼”
• Easy installation, 2 years warrantyInfo: DSA 19 Gesta PPW_EN
DSA 2, circulation heater Stainless steel 9-100 kW
DSA 2, circulation heater Stainless steel 9-100 kW
• Stainless steel 304 / 316L model, suitable for horizontal use, size tank: Ø273-356 mm
• Capacity, connections, control, etc., to desired specification
• Optional: thermostats, PT-100 sensor, proportional control.
• Applications: normal water, water/glycol or oil
DSA 3: circulation heater Stainless steel Ø168-Ø273, 9 – 45 kW
DSA 3: circulation heater Stainless steel Ø168-Ø273, 9 – 45 kW
• Stainless steel 304 / 316L model, suitable for horizontal use, size tank: ± Ø168-273 mm
• Capacity standard range 3x400V; 9 – 45 kW
• Connections in / out 2″BSP, control etc., to desired specification
• Optional: thermostats, PT-100 sensor, proportional control
• Applications: normal water, water/glycol or oil

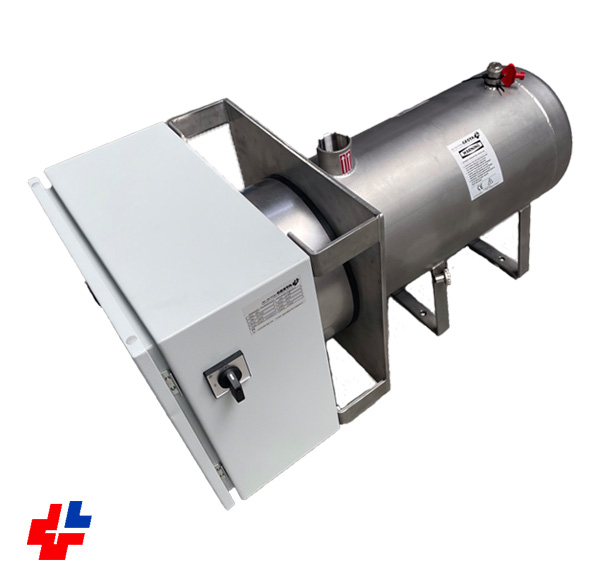

DSA 4: circulation heater Stainless steel 9 – 100 kW
DSA 4: circulation heater Stainless steel 9 – 100 kW
• Watersided stainless steel 304 / 316L, connection box steel painted, suitable for horizontal use, size tank: ± Ø273-356 mm
• Capacity, power supply and control on specification
• Connections in / out 2″BSP, control etc., to desired specification
• Optional: thermostats, PT-100 sensor, proportional control, control cabinet on distance
• Applications: normal water, water/glycol or oil
DSA 6: circulation heater stainless steel ïsolated (thermal oil)
DSA 6: circulation heater stainless steel ïsolated (thermal oil)
• 100 kW-3x400V, suitable for thermal oil up to 225 °C, entirely made with stainless steel 304
• including insulation package and stainless steel plating
• DN65, heated with ceramic elements, suitable for thyristor control
• Optional: control at desired specification.
DSA 8: circulation heater 100kW, RAL9010 PLC control
DSA 8: circulation heater 100kW, RAL9010 PLC control
• Circulation heater/flow trough heater make Stainless steel 304, painted RAL 9010, with extended 6-step PLC control, 16.7kW-3x400V
• Very detailed control with digital display and PT 100 temperature sensors
• Optional: PLC, flow monitoring, pressure protection, etc.
• Application: water, water-/glycol or oil heating
DSA 11: circulation heater flange connection
DSA 11: circulation heater flange connection
• Execution in stainless steel AISI 304/316L dimensions ±Ø168-356mm, with flange connections ±DN32-300
• Power,connections, control etc. on specification, additional with PT 100, thyristor and flow control
• Applications: flow trough devices for water, water/glycol or olie
DSA 20: circulation heater for air DSAL 10kW-3x400V
DSA 20: circulation heater for air DSAL 10kW-3x400V
• Suitable for in-line heating of air in a pressure system till 3 Bar G, Stainless steel execution
• Including limit thermostat and control thermostat 50-300°C
• Connections NW50 of op specificatie, dimensions Ø160x1250mm
• Applications: proces industry, Bio industry
DSA 24, Flow device: stainless steel with circulation pump (thermal oil)
DSA 24, Flow device: stainless steel with circulation pump (thermal oil)
• Circulation heater suitable to heat up thermal oil up to 200 °C
• Stainless steel model 5kW-3x400V with gear pump
• Dimensions Ø168×550 mm, including electronic control
• Other models upon request
• Applications: proces heating oil high temperature
