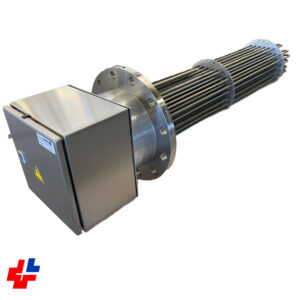

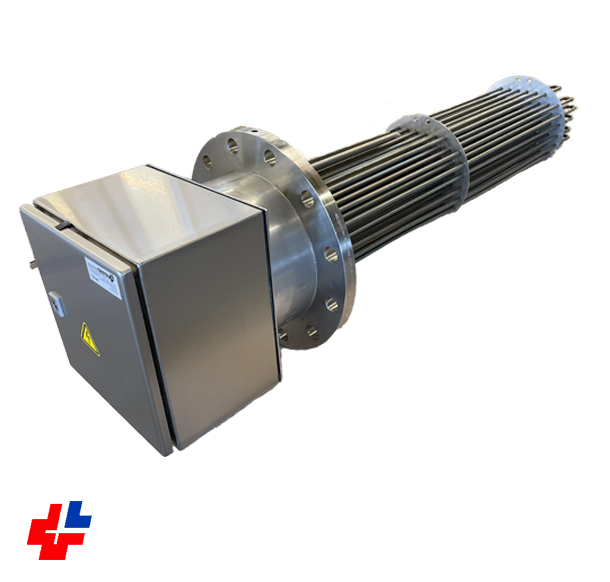

FPE 11: flange heater 33,6 kW, 4 st. NW250 for fuel oil
FPE 11: flange heater 33,6 kW, 4 st. NW250 for fuel oil
• Flensplaatelement NW250 voorzien van 36 elementen RVS 316 Ø8,5mm geschikt voor tankverwarming dieselolie
• 4 stappen 8,4 kW, incl relais, thermostaten 0-40°C, max. thermostaat 55°C en alarm contact
• RVS aansluit box 300x300x210 mm IP66
• Insteeklengte 1000mm (2 W/cm²)
KIH 6: kanaalverwarmer, luchtverhitter RVS 125 kW, 6 st.
KIH 6: kanaalverwarmer, luchtverhitter RVS 125 kW, 6 st.
• Duct heater AISI 304, flange by disere, connection cabinet on distance from duct, suitable for high temperature air in duct (max. ± 400°Cl)
• Power, power supply, dimensions and control based on specification
• Model: 125 kW-3x400V, 6 st 21 kW incl. seperate thyrister control
• Housing hxbxd: 745x435x1000 mm
• 108 tube heating elements Ø8,5mm, 1160W.
