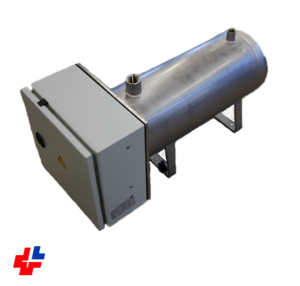

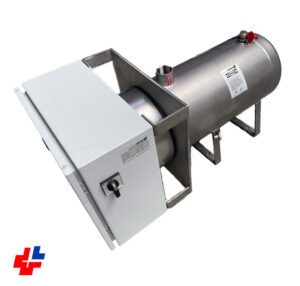

DSA 4: circulation heater Stainless steel 9 – 100 kW

Watersided stainless steel 304 / 316L, connection box steel painted, suitable for horizontal use, size tank: ± Ø273-356 mm
Capacity, power supply and control on specification
Connections in / out 2″BSP, control etc., to desired specification
Optional: thermostats, PT-100 sensor, proportional control
Applications: normal water, water/glycol or oil


Electric flow devices, circulation heaters are specially developed, modified and manufactured according to your desired needs and specifications; suitable for heating water, water-glycol, oil, etc.  We can provide high-quality copper elements for boilers from Daalderop and Nibe; highly suitable for shipping and offshore applications. Power and surface pressure are adaptable based on our expertise and capabilities.

Dimensions: various standard models or at desired specification
Material: stainless steel housing: 304/316L • Boilers: copper or stainless steel cocoon with insulation
Power supply: up to 690V
Elements: copper tube elements, stainless steel 316L, INC800, INC825
Optional: stainless steel, or painted connection box, thermostats and/or (PLC, proportional) temperature control
Application: food industry, shipping and offshore, industrial applications
